Sustainability Math A Quantitative Literacy and Mathematics Resource for Instructors

We tend to think of corporate taxes as a federal issues and less a local issue, but the article Reclaiming corporate tax revenues by Josh Bivens (4/14/2022) in EPI has some key takeaways:

Depending on how it is measured, the effective state and local tax rate on corporate profits shrunk by between a third and a half between 1989 and 2017.

The resulting revenue shortfall is estimated to be at least $43 billion and possibly as high as $57 billion.

The erosion of state corporate income tax revenue has nothing to do with corporations’ ability to pay. Indeed, corporate profits have risen even as corporate tax revenues have declined.

This has real consequences for state and local spending—constraining these governments’ ability to provide basic services to their residents.

State and local (S&L) public investment is more than the Fed:

For most years since 1979—and for all years since 1988—the S&L sector has directed more public investment than the federal government. By 2019 this gap was quite large, with public investment from the S&L sector equaling 2.0% of GDP while investment from the federal government totaled just 0.8% of GDP. In dollar terms, that’s a gap of roughly $220 billion annually.

The article is detailed with numerous charts (and data). Worth reading.

The NSIDC page Springtime in the Artic (5/3/2022) has a section on sea ice age.

At the end of last summer, the extent of the oldest ice (greater than 4 years old) tied with 2012 for the lowest in the satellite record. This spring, we continue to see a dominance of first-year ice (Figure 4). The percentage of the greater than 4-year-old ice, which once comprised over 30 percent of the Arctic Ocean, now makes up only 3.1 percent of the ice cover.

The page has other graphs and maps related to ice. There is a link in the citations for data related to the graph copied here.

The first question is probably what is a wind rose? Take a look at the graph to see an example of a wind rose. Now you probably want one for your location.  Start at the Iowa State University IEM Site Information page. Select a network based on your state. Click switch network to change the map. You can then select a station by double clicking a dot or using the drop down menu. Once you click select a station you get a new page.  Click the Wind Roses tab to get a selection of wind roses. You’ll get a total data one and ones for each month of the year.  Each wind rose graph has a link to view the raw data, which can be downloaded. You can also generate a custom wind rose by clicking the Custom Wind Roses tab. Climate.gov has some information about the wind roses at Wind Roses from airports around the world – Graphics or Raw Data Tables.

The Pew article, U.S. public continues to view grades, test scores as top factors in college admissions by Vianney Gómez (4/26/2022), provides the result of a survey about college admissions:

More than nine-in-ten Americans (93%) say high school grades should be at least a minor factor in admissions decisions, including 61% who say they should be a major factor. Grades are, by far, the criteria the public says should most factor into admissions decisions. This is followed by standardized test scores (39% major factor, 46% minor factor) and community service involvement (19% major, 48% minor), according to a Pew Research Center survey conducted March 7-13, 2022.

By comparison, nearly three-quarters of Americans or more say gender, race or ethnicity, or whether a relative attended the school should not factor into admissions decisions.

There are three graphs in the article, such as the one copied here, and a methodology section.

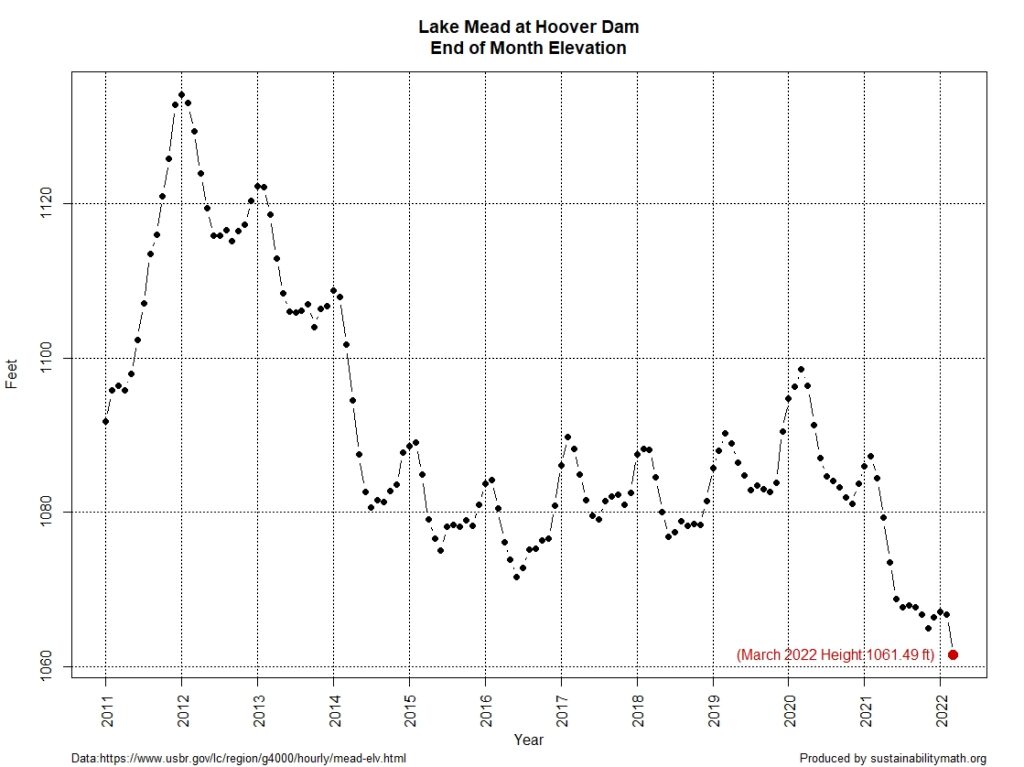

Most of the western half of the U.S. continues to have various levels of drought (see U.S. Drought Monitor) and Lake Mead has reached a new low. The graph here is from the data on the Lake Mead at Hoover Dam, End of Month Elevation (feet) page by the Bureau of Reclamation. How low can Lake Mead go before it gets serious?

The Sept Lake Mead post and the July Lake Mead post, which has a link to the R code for the graph.

If you check the Climate.gov page Interactive map: Latest snow on record for thousands of U.S. weather stations by Tom Di Liberto (updated 3/30/2022) you can find the date of the last snowfall on record at a weather station near you. On the map:

This interactive map shows the latest day for which measurable snow (accumulations of greater than 0.1 inches) was recorded for thousands of U.S. weather stations during their period of operation (up through April 11, 2018.) Purple colors reflect latest-snowfall dates that occurred later in the year, while bluer shades reflect earlier dates for the last snow of the year.

On one of the patterns in the map:

The interesting wrinkle is that the change in date of the latest final snow of the season does not follow a strictly east to west line across the country, even to the east of the Rockies, as it would if latitude were the only influence. Instead, it appears to occur on a diagonal across the Great Plains and into the Midwest. Why is that? Well the answer lies both to the south (the Gulf of Mexico) and the north (Canada).

As the calendar moves into spring, warmer air from closer to tropics and over the Gulf of Mexico begins to moderate temperatures enough over the southeast to make it difficult for temperatures to be cold enough for snow. Meanwhile, cold air that resides in the interior of Canada can still funnel south, bounded on one side by the Rocky Mountains, allowing for the occasional late spring snowfall, even as far south as higher elevations in New Mexico.

There are no direct data sources but the map is interesting.

The Pew article Race is Central to Identity for Black American and Affects How They Connect With Each Other by Kiana Cox and Christine Tamir (4/14/2022) is report on an extensive survey with about 37 charts and tables such as the one copied here.

When asked in an open-ended question to identify the most important issue in the community they live in, the top issue was violence or crime (17%). This includes Black Americans who listed specific issues such as drug activity, shootings, or theft; but also those who simply listed “violence” or “crime” as the most pressing issues in their communities. Another 11% of Black adults said economic issues such homelessness, poverty and taxes were most important.

How does this compare to the general public?

The Black population’s rating of the most important issue facing the community they live in is only slightly different from that of the general public. Americans overall name economic issues (15%), violence or crime (12%), and COVID-19 and public health (7%) as the most important issues in their community.

As usual, there is a detailed methodology section.

From NOAA’s Global Climate Report – March 2022:

The March 2022 global surface temperature departure was the fifth highest for March in the 143-year record at 0.95°C (1.71°F) above the 20th century average. This was also the highest monthly temperature departure since November 2020. The seven warmest Marches have occurred since 2015, while the 10 warmest Marches have occurred since 2002. March 2022 also marked the 46th consecutive March and the 447th consecutive month with temperatures, at least nominally, above the 20th century average.

Time series data is available at the top of the page.

The focus on greenhouse gasses is typically on CO2, but we shouldn’t forget about methane. From the NOAA article Increase in atmospheric methane set another record in 2021 – Carbon dioxide levels also record a big jump (4/7/2022):

For the second year in a row, NOAA scientists observed a record annual increase in atmospheric levels of methane, a powerful, heat-trapping greenhouse gas that’s the second biggest contributor to human-caused global warming after carbon dioxide.

NOAA’s preliminary analysis showed the annual increase in atmospheric methane during 2021 was 17 parts per billion (ppb), the largest annual increase recorded since systematic measurements began in 1983. The increase during 2020 was 15.3 ppb. Atmospheric methane levels averaged 1,895.7 ppb during 2021, or around 162% greater than pre-industrial levels. From NOAA’s observations, scientists estimate global methane emissions in 2021 are 15% higher than the 1984-2006 period.

Methane data links are at the bottom of this Global Monitoring Laboratory page. There is also a methane project on the Calculus Projects page.

The European Space Agency post Zooming into the Sun with Solar Orbiter (3/24/2022) says:

One of the images, taken by the Extreme Ultraviolet Imager (EUI) is the highest resolution image of the Sun’s full disc and outer atmosphere, the corona, ever taken.

In total, the final image contains more than 83 million pixels in a 9148 x 9112 pixel grid. For comparison, this image has a resolution that is ten times better than what a 4K TV screen can display.

Ok, no data here and I don’t have any ideas on how to connect this to a math class, but if you go to the article you will be treated with a zoomable image of the sun (way more detail than the one copied here). I’m posting this because it is so cool. The article itself provides some tips on what to look at:

At the 2 o’clock (near the image of the Earth for scale) and 8 o’clock positions on the edges of the Sun, dark filaments can be seen projecting away from the surface. These ‘prominences’ are prone to erupt, throwing huge quantities of coronal gas into space and creating ‘space weather’ storms.

Enjoy.
